Multi-turn Motorized Gate Valve Actuator: The Motor That Replaces the Handwheel

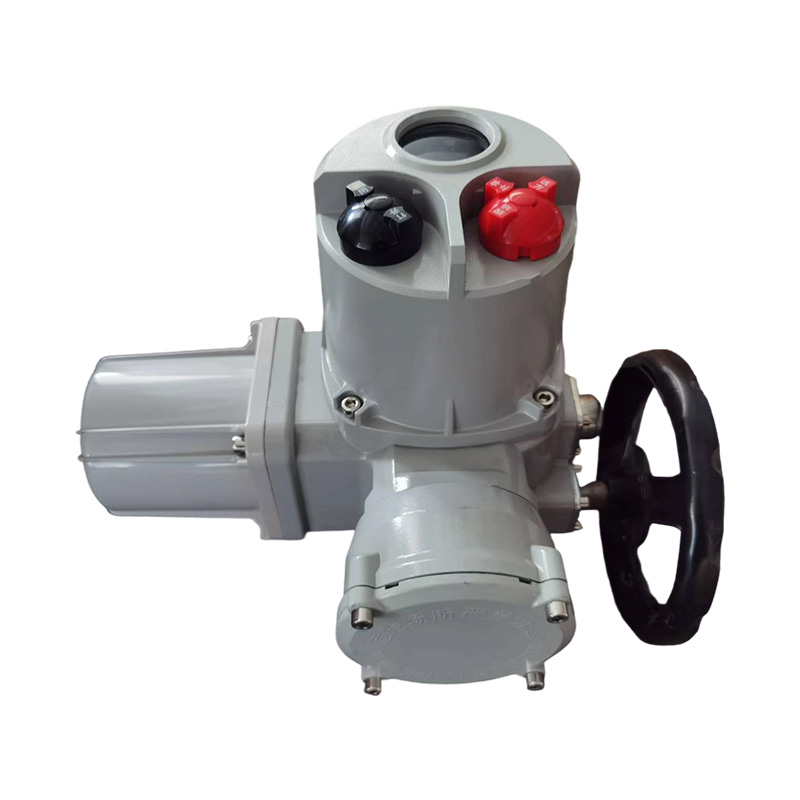

A gate valve opens and closes by turning a threaded stem. A handwheel does the turning, and a person does the work. A multi-turn motorized gate valve actuator replaces both. It bolts onto the valve top, grips the stem, and turns it under electric power. The actuator is for valves that are too big for a handwheel, too remote for an operator, or too critical to be left to human memory. For water plants, pipelines, and industrial process systems, the multi-turn actuator turns the valve that used to turn the operator's day.

The Motor and the Gearbox

The motor is electric, running on three-phase or single-phase power. It drives a gearbox that reduces the motor speed to the valve stem speed. A gate valve opens slowly, with many turns of the stem from closed to open. A multi-turn motorized gate valve actuator delivers that turning, turn after turn, without tiring.

The gearbox is a worm gear or a spur gear train. It multiplies the motor torque so the actuator can move a valve stem that would take two people on a handwheel. A multi-turn motorized gate valve actuator with a properly sized gearbox handles the valve torque at full line pressure.

The motor is protected. Thermal overload protection shuts the motor down before it burns out. Torque limiting stops the motor when the valve reaches the end of its travel. A multi-turn motorized gate valve actuator with both protections runs without an operator watching it.

The Control and the Position

The actuator is not just a motor. It is a control device. It knows where the valve is and it can be told where to go. A multi-turn motorized gate valve actuator with a position transmitter sends a 4-20 milliamp signal to the control room. The operator sees the valve position on a screen.

The limit switches stop the motor at the open and closed positions. They are set during commissioning and then they stay. A multi-turn motorized gate valve actuator with properly set limit switches does not over-travel the valve and damage the seats.

The handwheel override is the backup. When the power is out or the motor fails, the operator can still turn the valve by hand. A multi-turn motorized gate valve actuator with a manual override keeps the valve operable without electricity.

The Valve That Needs the Actuator

A 24-inch gate valve on a main water line is too big for one person to operate reliably. A multi-turn motorized gate valve actuator on that valve opens and closes it on schedule, or on command from the control room.

A valve in a remote station, at the end of a pipeline, is not staffed. The actuator runs from a local control panel or a remote signal. A multi-turn motorized gate valve actuator in a remote location operates the valve without a site visit.

A critical isolation valve in a process plant has to close fast when something goes wrong. The actuator receives the emergency signal and drives the valve shut. A multi-turn motorized gate valve actuator on a safety-critical valve has to be reliable above all else.

Here is what a multi-turn motorized gate valve actuator needs to deliver:

• Electric motor with thermal overload protection
• Gearbox sized for the valve stem torque
• Limit switches set for open and closed positions
• Position transmitter for remote indication
• Manual handwheel override
• Enclosure rated for the installation environment

The Water Plant and the Pipeline

Water treatment plants use multi-turn actuators on the large gate valves that isolate the filters and the tanks. The actuators run on schedule, opening and closing valves that used to be a two-person job with a long handle.

Pipelines use the actuators on the block valves along the line. The valves isolate sections for maintenance or emergency. A multi-turn motorized gate valve actuator on a pipeline block valve closes it from the control room instead of sending a crew.

Power plants use the actuators on the cooling water and steam isolation valves. The valves are large, the temperatures are high, and the access is restricted. A multi-turn motorized gate valve actuator puts the control where the operator already is.

The Actuator That Loses Its Position

The actuator drifts because the limit switches were set wrong or the position transmitter lost calibration. The control room sees the wrong position. A multi-turn motorized gate valve actuator with properly set and secured limit switches stays accurate. The motor burns out because the torque limiter failed and the valve jammed. Torque protection prevents the burnout. The manual override seizes because the declutch mechanism was not maintained. A properly maintained override stays free.

A multi-turn motorized gate valve actuator replaces the handwheel and the person turning it. The motor drives. The gearbox multiplies. The controls protect and report. Choose an actuator sized for the valve torque, with proper limit and torque protection, and an enclosure for the environment. The valve will open when told and close when needed. That is what the actuator is for.
