Universal Outer Chamber for Pneumatic Diaphragm Pump: The Shell That Contains the Pressure

A pneumatic diaphragm pump moves chemicals, slurries, and fluids by flexing diaphragms inside a chamber. The outer chamber is the pressure boundary, the part that holds the fluid and the pumping action together. A universal outer chamber for pneumatic diaphragm pump is designed to fit multiple pump sizes and configurations, so the same chamber works across a range of models. For maintenance crews and pump rebuilders, the universal chamber means fewer part numbers and faster repairs.

The Chamber That Holds the Pressure

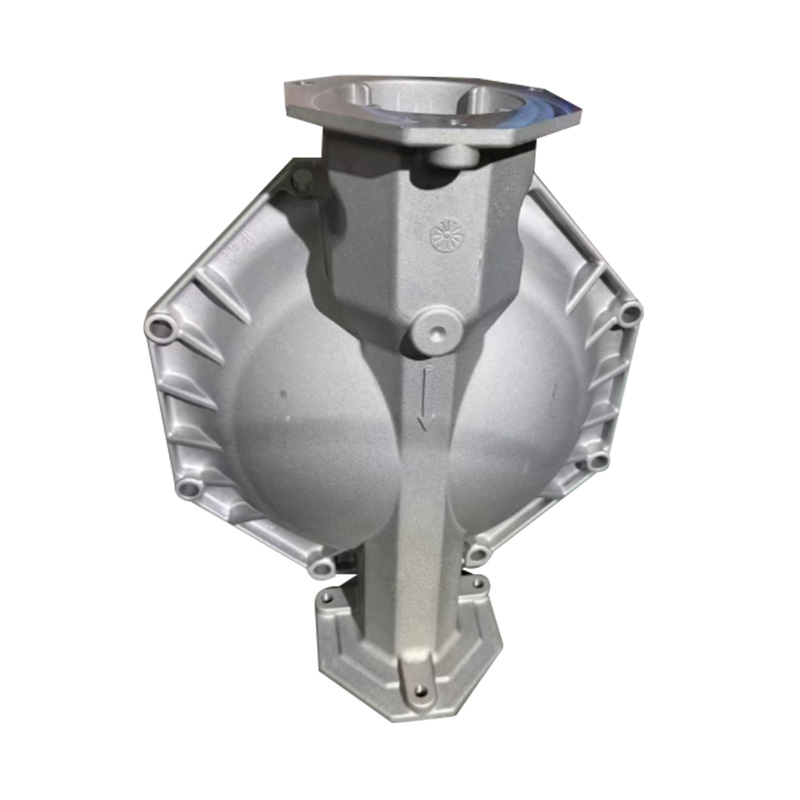

The chamber is cast aluminum, stainless steel, or polypropylene, depending on the fluid and the environment. Aluminum is light and handles most neutral fluids. Stainless handles corrosive chemicals. Polypropylene handles acids and alkalis at lower pressures. A universal outer chamber for pneumatic diaphragm pump has to be cast or molded to the same pressure rating as the original pump.

The chamber bolts to the center block and seals against the diaphragm. The seal surface has to be flat and clean. A universal outer chamber for pneumatic diaphragm pump with a properly machined sealing face holds pressure without leaking.

The fluid ports, the inlet and the outlet, are part of the chamber. The port threads, NPT or BSP, have to match the existing piping. A universal outer chamber for pneumatic diaphragm pump with correctly machined ports bolts into the system without adapters.

Why Universal Fits Multiple Pumps

A pump manufacturer builds a family of pumps: one-inch, one-and-a-half-inch, two-inch. The chambers are similar but not identical. A universal outer chamber for pneumatic diaphragm pump is machined to fit the common dimensions across the family. It may have multiple bolt patterns or an adapter plate. The result is one chamber part number that covers several pump models.

The universal design reduces inventory. A maintenance department stocks one chamber instead of three. A pump rebuilder carries fewer parts in the truck. A universal outer chamber for pneumatic diaphragm pump that fits the common models pays back in simpler logistics.

The trade-off is fit. A universal chamber has to fit well enough on every pump it claims to cover. Bolt holes that are slightly off, a port that does not align, a seal surface that does not match. A universal outer chamber for pneumatic diaphragm pump that fits poorly on all models is worse than three correct parts.

The Material and the Wear

The chamber wears where the fluid moves. Abrasive slurries erode the walls. Corrosive fluids attack the metal or the plastic. A universal outer chamber for pneumatic diaphragm pump in the right material for the fluid lasts the pump's service life. The wrong material fails early.

The chamber also takes the mechanical stress of the diaphragm flexing. Every pump cycle flexes the diaphragm, which presses against the chamber. The chamber wall has to be thick enough to resist that repeated loading. A universal outer chamber for pneumatic diaphragm pump with proper wall thickness holds its shape.

Here is what a universal outer chamber for pneumatic diaphragm pump needs to deliver:

• Material matched to the fluid: aluminum, stainless, or polypropylene
• Flat sealing face for the diaphragm joint
• Correct port threads for the existing piping
• Fit across multiple pump models in the family
• Wall thickness for pressure and flexural loading
• Bolt pattern that aligns without forcing

The Maintenance Crew and the Rebuild

The pump stops pumping. The maintenance crew opens it up. The diaphragm is worn. The chamber is eroded. The universal outer chamber for pneumatic diaphragm pump is on the shelf, fits the pump, and goes on. The pump is back in service the same shift.

The rebuild shop takes in pumps of different sizes from different customers. The universal chamber covers several of them. The shop carries fewer parts and turns the rebuilds faster. A universal outer chamber for pneumatic diaphragm pump is the part that makes the shop more profitable.

The Chamber That Does Not Fit

The bolt holes do not line up because the universal design compromised too much. The chamber has to be forced, and the forcing cracks the flange. A properly designed universal chamber fits without forcing. The seal surface leaks because the chamber was not machined flat. A properly machined face seals. The port threads are the wrong standard and the piping does not connect. The correct thread standard is the only answer.

A universal outer chamber for pneumatic diaphragm pump is a service part. It replaces the chamber on multiple pumps and gets the pump back to work. Choose a chamber with the right material, a true seal face, and a fit that actually works on the pumps it claims. The pump will hold pressure and move fluid. That is the job.
