Valve Manual Mechanism Turbine Head Manufacturer: The Gearbox That Opens Valves Too Big for a Handle

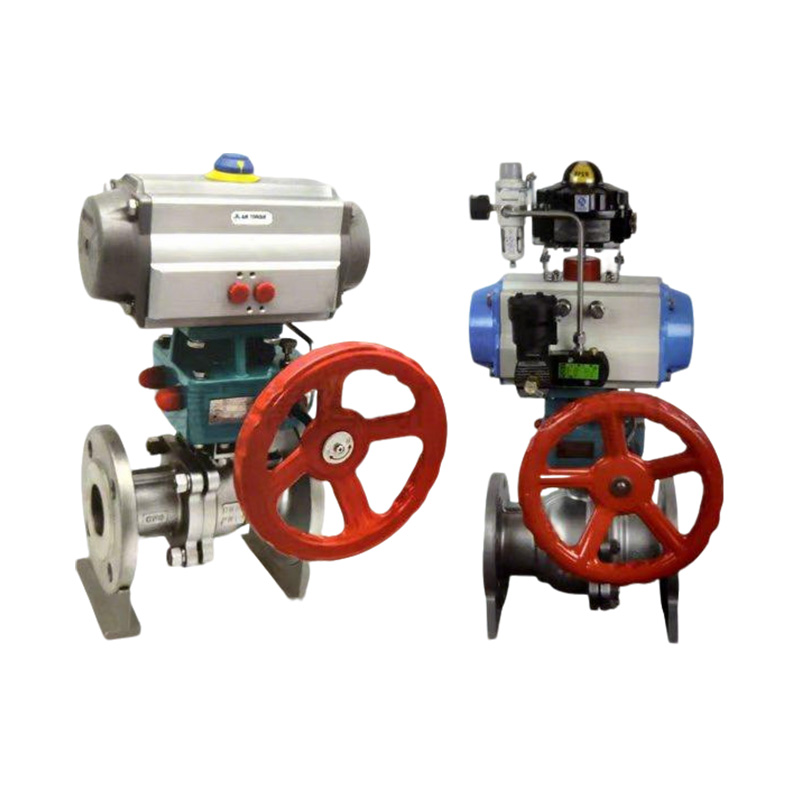

A small valve turns by hand. A 24-inch gate valve under line pressure does not. The force needed exceeds what a person can apply through a direct lever. A manual mechanism turbine head, often called a gear operator, mounts on top of the valve. The handwheel turns a worm gear. The worm drives a wheel connected to the valve stem. The mechanical advantage multiplies input force, letting one operator open and close valves that would otherwise need a crew or an actuator. A valve manual mechanism turbine head manufacturer builds these gearboxes for water plants, oil pipelines, and power stations.

The Gear Set That Multiplies Torque

Inside the housing, a worm gear set does the work. The handwheel turns the worm. The worm drives a worm wheel. The ratio, typically 20:1 to 80:1, multiplies torque by the same factor. A single handwheel revolution moves the valve stem a fraction of a turn.

The worm is alloy steel, hardened and ground. The worm wheel is bronze or ductile iron with a bronze wear ring. Bronze-on-steel gives low friction and resists galling through repeated cycles. A valve manual mechanism turbine head manufacturer matches the gear ratio to the valve's stem torque so the operator works within a comfortable rim pull.

The worm gear self-locks at high ratios. When the operator stops turning, the valve holds position against line pressure without a brake. No creep. No drifting. A valve manual mechanism turbine head manufacturer designs the ratio so the valve stays put.

The Housing and Seals That Keep It Alive

Ductile iron housings enclose the gear set. The housing keeps water, dust, and contaminants out. A valve manual mechanism turbine head manufacturer pours ductile iron castings and machines the bearing bores and mounting flange in one setup to keep the worm and wheel aligned.

Shaft seals protect the input and output shafts. Lip seals or O-rings keep rainwater from entering at the handwheel shaft and prevent grease from leaking at the stem. A valve manual mechanism turbine head manufacturer tests every assembled gearbox for seal integrity.

Grease fills the housing for life. A grease fitting lets maintenance refresh lubricant without disassembly. A valve manual mechanism turbine head manufacturer selects grease rated for the temperature range, from freezing outdoor vaults to desert pipeline stations.

Position Indication and End Stops

The operator needs to know if the valve is open or closed. A pointer and graduated dial on top of the housing show position at a glance. A valve manual mechanism turbine head manufacturer calibrates the indicator so the pointer aligns with the valve's actual position.

Mechanical end stops prevent over-travel. When the valve reaches fully open or closed, the stops engage and prevent further rotation. They protect seats and stem threads from over-torque damage. A valve manual mechanism turbine head manufacturer sets the stops during assembly and seals the adjustment.

Here is what a turbine head needs to operate reliably:

• Hardened steel worm and bronze worm wheel matched to valve torque
• Ductile iron housing with sealed shafts and lifetime grease fill
• Position indicator calibrated to the valve disc or ball
• Mechanical end stops set and sealed against field tampering

Where Gear Operators Prove Their Worth

Water treatment plants run hundreds of large valves. Anything over 12 inches typically uses a turbine head. One operator makes the rounds and turns handwheels that would otherwise need portable actuators. A valve manual mechanism turbine head manufacturer supplying water utilities builds gearboxes that survive damp, chlorinated air inside valve vaults.

Pipeline isolation valves sit in remote locations without power. The turbine head allows manual operation. A buried valve uses a handwheel adapter that extends to grade. The operator opens a surface box and turns.

Emergency shutdown valves must close when needed. The turbine head holds the valve open during normal operation and allows closure in seconds. A valve manual mechanism turbine head manufacturer designs for low breakaway torque so movement starts quickly on valves not cycled in months.

Why Undersized Gearboxes Fail Early

Gear wear accelerates under overload. A turbine head too small for the valve's torque strips the worm wheel teeth within the first few cycles. A valve manual mechanism turbine head manufacturer sizes the gear set with a service factor for corrosion and seat sticking. Water ingress rusts bearings and emulsifies grease when shaft seals fail. Quality seals and a sealed cover joint prevent this.

A valve manual mechanism turbine head converts a large valve into a one-person operation. The handwheel turns. The worm drives the wheel. The valve opens or closes. Choose a manufacturer that sizes the gears for the load, seals the housing, and sets the stops. The gearbox delivers the mechanical advantage it was designed for, every time.
